Enter device website / set Device Name

On your web-browser (Safari/Firefox/Chrome) enter DataLogger address in AP mode: 192.168.4.1

Make sure no “www” is in front of the address.

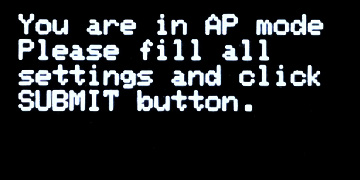

If connected successfully the DataLogger display will show a message:

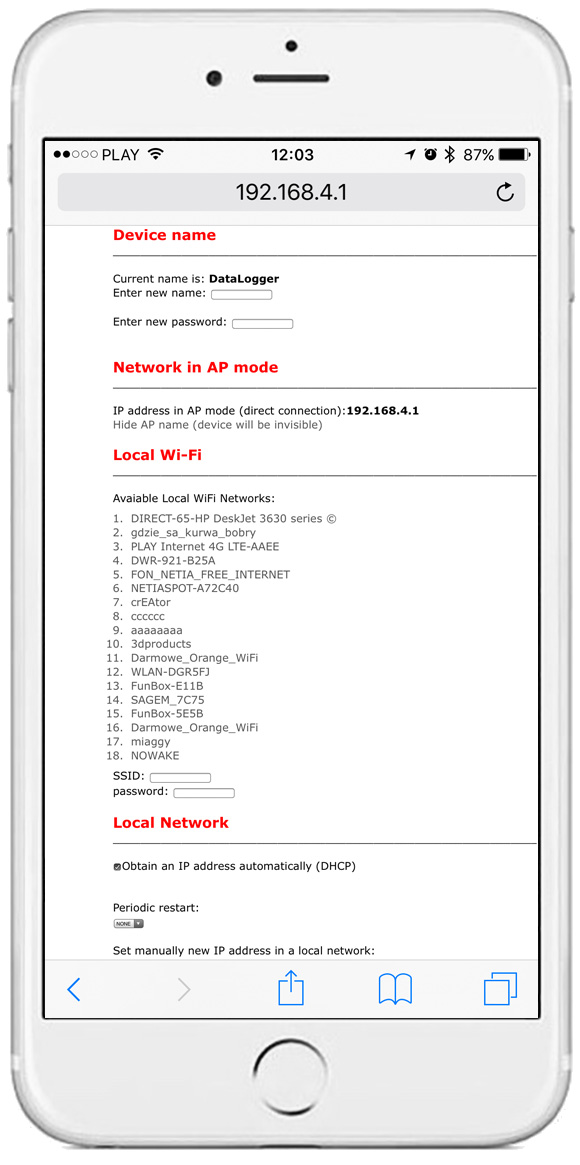

and you will be able to enter on your smartphone most important parameters:

  1. Device Name (ideally name it by location (IndigoRoom) name is important to recognize by operators and ChromaChecker system)
  2. Local Wi-Fi parameters: SSID (network) and password (network password) of Access Point that will provide Internet connection,
  3. Local Network settings (automatic – DHCP or manual IP address, Gateway, Mask, DNS)
  4. Units (Celcius or Fahrenheit)

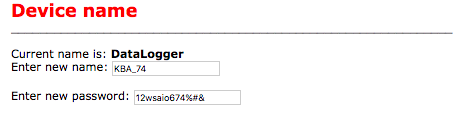

Start with Device Name - that will be how the device will be listed on Wi-Fi List.
You should also set a new password (required for Wi-Fi connections).
