Substrate Backer

Backer dedicated for Substrate Inspector. Make it possible to standardize measurement on white and black backing.

• Size: 200x 90 mm
• White area: 70x70 mm,
• Black area: 70x70 mm

Backer is compatible with the i1iO  Substrate Inspector templates for capturing 4+4 or 9+9 (averaging mode).

Recommended for handheld instruments.

White Backing area

According to ISO:13655, white backing should have a diffuse-reflecting surface.

Typical ChromaChecker QC batch production measurement:

1. Opacity 100% (99,3% single page) [expected value >99%}]
2. FLuorescence = 0,0 [expected 0,0]
3. L*= 94,6  [requirement: L* shall not exceed 97], a*=-0,94    b*= 1,34
4. C*=1,64  [requirement - shall not be larger then 3.00], h*=125,1

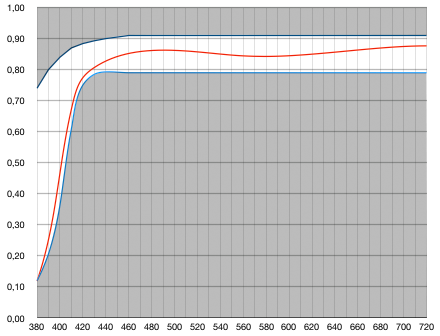

5. Reflectance for given wavelength shall bein given by ISO13655 range 380-730nm:

   0,1190 0,2258 0,4528
   0,6727 0,7738 0,8069 0,8224 0,8345 0,8453 0,8530 0,8582 0,8613 0,8619
   0,8611 0,8603 0,8570 0,8538 0,8499 0,8444 0,8461 0,8470 0,8474 0,8467
   0,8472 0,8469 0,8481 0,8515 0,8555 0,8584 0,8627 0,8668 0,8688 0,8733
   0,8765 0,8767

Black Backing area

According to ISO:5-4 black banking should have a diffuse-reflecting surface.

Typical ChromaChecker QC batch production measurement:

1. Average Density = 1,44 [have to be between 1.30 – 1.70]
2. Density Range = 3,9 [expected value shall be less than 5]
